Buck Stove Model 74 Non-Catalytic Wood Burning Stove with Door - FP 74
Model 74 is a non-catalytic wood burning stove designed to meet the most stringent emissions standards without the use of a catalytic combustor. Model 74 has a BTU rating of up to 52,400 and cand heat up to 2600 square feet. The Buck Stove model 74 delivers heavy-duty heat performance and is available as a masonry and pre-fabricated fireplace insert or freestanding unit. At 73% efficiency, you will be getting more heat with less wood.
Buck Stove has been manufacturing quality stoves in the United States for over 40 years! Add a blower for increased efficiency and heat circulation. You can be sure Buck Stove is providing quality and craftsmanship. Beautiful, modern, and made to last Buck Stove products will be in your home for a long, long time. And get this, everything made by Buck Stove is crafted right here in the US.
FEATURES:
- Size: 22 Inches
- Color: Black
- Product Dimensions: 27 5/8" W x 21 1/2" H x 22 3/8" D(FP74G, FP74)
- Non-catalytic
- Weighs 585 lbs.
- Freestanding wood stove
- Firebox volume of 2.6 cubic feet
- Easy operation and low maintenance
- Three design options to choose from
- Approved for use in prefab and mobile homes
- Accommodates 16" logs front to back or 22" side to side
TECHNICAL SPECIFICATIONS:
- Maximum BTU Output with Dry Cordwood: 52,400
- Average Overall Efficiency: 73%
- Recommended Heating Area: 1500 to 2600 sq. ft.
- Maximum Log Size: 22"

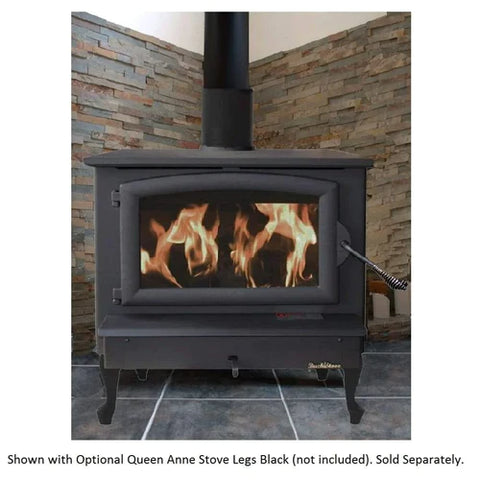

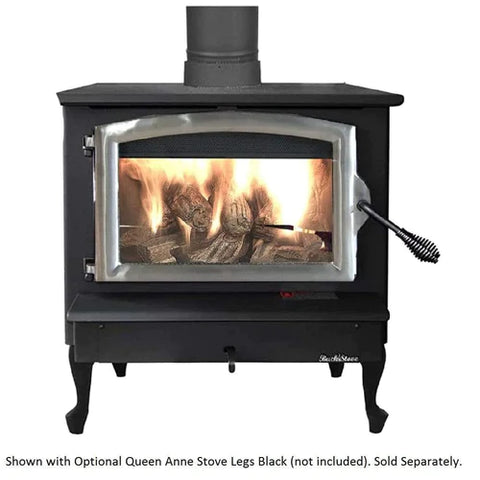

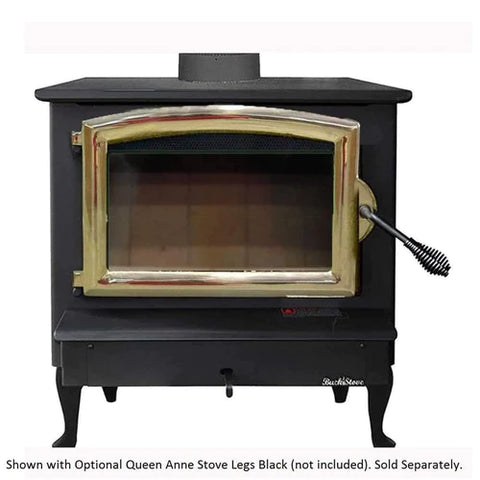

*Please Note: This is for the stove only. Images are shown with Pedestal, Optional Trim Kit or Stove Legs. Not Included and sold Separately.
SPECIFICATIONS:
| Model 74 Wood Stove | FP 74, FP 74G, FP 74P |
| Stove Dimensions | 21-1/2" H x 27-5/8" W x 22-3/8" D |
| Cubic Feet Firebox Volume | 2.5 |
| Weight | 460 lbs |
| Firewood Length | 22" (side to side) 16" (front to back) |
| Minimum Fireplace Dimensions | 22-1/2" H x 27-3/4" W x 15" |
| Flue Size | 6" |
| Efficiency | Up to 73% |
| Heart Pad Size | 34" W x 48" D** |
| Heat Capacity | 1500 - 2,600 Sq. Feet |
| Output BTU/H | 13,300-52,400 |
| Emissions G/H | 1.8 |
| Maximum CFM | 85 CFM (Optional Blower) |
| Amperage Requirement | 1.1 Amps (Optional Blower) |
| Blower Type | Single |
| Ashpan | No |
| Optional Pedestal | Yes |
| Pre-Fab Approved | Yes |
| Mobile Home Approved | Yes |
| Installation Options | Freestanding with optional Pedestal/Stove Legs or Fireplace Insert |
