Drolet Escape 1800 Wood Stove - Brushed Nickel Door DB03111
Tax Credit Eligible: Save $473 off the purchase price
Note: this is a tax credit offered by the US government - not a manufacturer's rebate. It's non-refundable, which means if you get money back on your taxes, it won't change anything for you, BUT if you owe money on taxes, this credit will reduce that amount.
Click here for more information on how to get the tax credit for your wood stove.

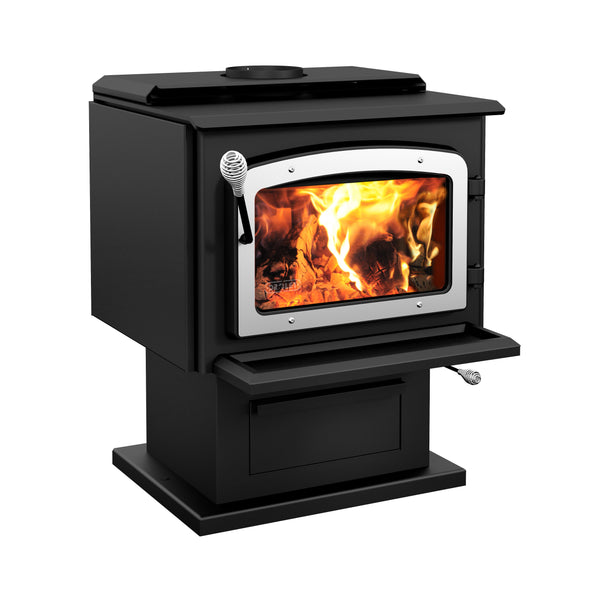

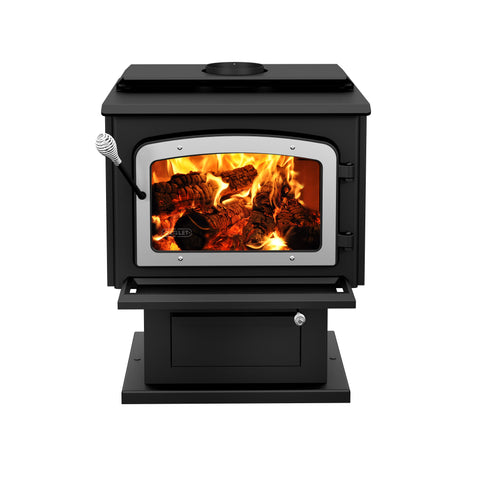

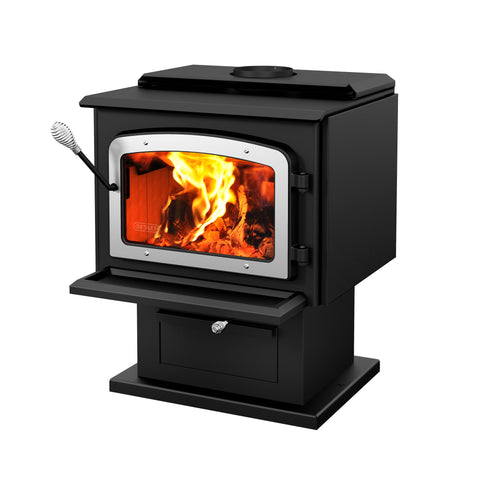

Drolet Escape 1800 Wood Stove - Brushed Nickel Door DB03111
Perfect for areas spanning up to 2,100 square feet, this expansive non-catalytic wood stove generates an impressive 75,000 BTU/h while releasing a mere 1.54 g/h of fine particles. The appliance comes complete with side panels designed to minimize required distances from flammable materials, in addition to a top-tier heat exchanger that channels warmth towards the unit's front.
Included: pedestal with ash drawer, brushed nickel door overlay, top air deflector, ceramic glass, side panels, ash lip, air damper
- Achieves a burn time of up to 8 hours
- Accommodates logs of up to 20" in length
- Features a 2.4 ft³ firebox
- Boasts a robust 5/16" steel top that is fortified with a stainless steel heat shield
- Holds an EPA certification
- Crafted with pride in Canada
- Backed by a limited lifetime warranty
- Certified for installation in both mobile homes and alcoves
- Eligible for the US tax credit program
Options: blower, thermodisc, firescreen, fresh air intake kit
Installation and Operation Manual
Specifications
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area (9) | 500 - 2,100 ft² |

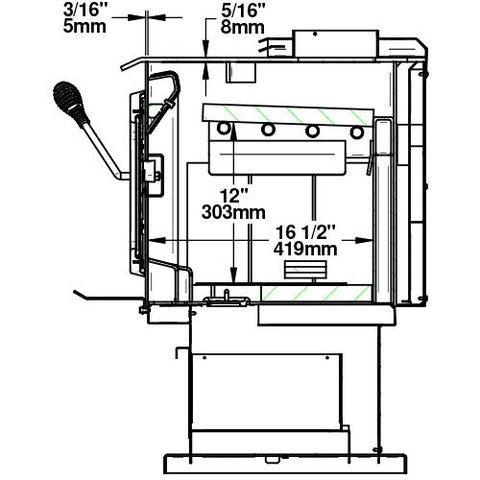

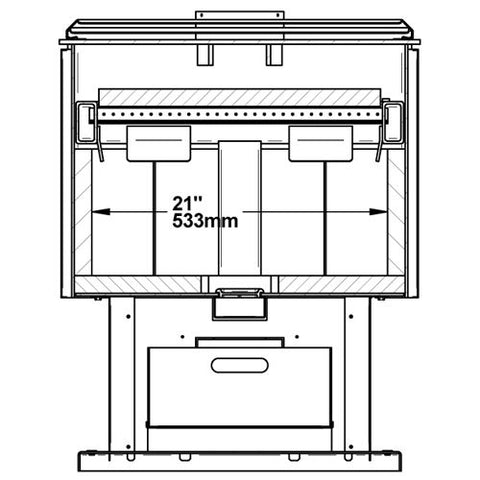

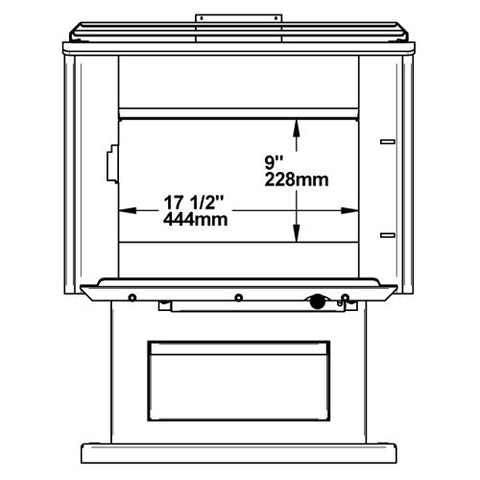

| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 1.95 ft³ |
| Maximum burn time (9) | 8 h |
| Maximum heat output-dry cordwood (4) | 75,000 BTU/h (22 kW) |
| Minimum overall heat output rate (4) (5) | 14,200 BTU/h (4.16 kW) |
| Maximum overall heat output rate (4) (5) | 44,500 BTU/h (13.04 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 72 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 77 % |
| Optimum efficiency (1) (2) | 79 % |
| Optimum heat transfer efficiency (8) | 76 % |
| Average particulate emission rate (3) | 2.3 g/h |
| Average CO (10) | 69 g/h |
| Size | Large |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |

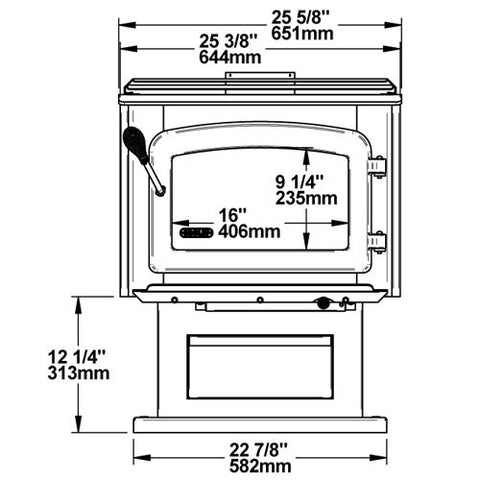

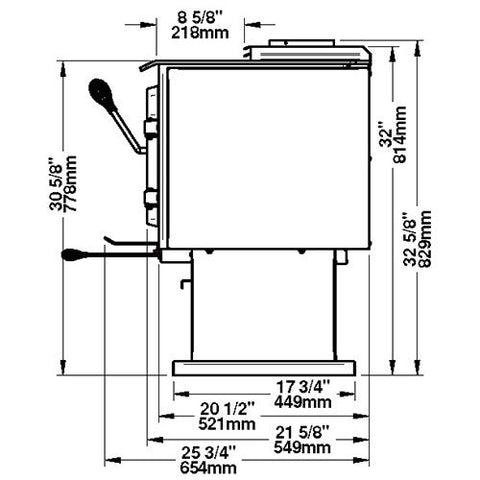

| Overall dimension (Width) | 25 5/8" |
| Overall dimension (Height) | 32 5/8" |
| Overall dimension (Depth) | 25 3/4" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |

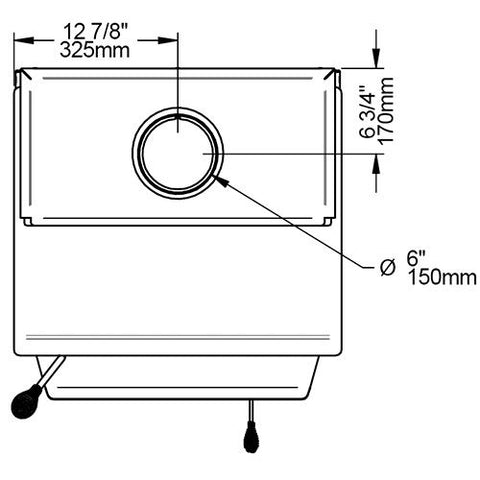

| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 6 3/4" |
Clearance
| Clearances to combustibles* | Canada | United-States | ||
| Single wall pipe | Double wall pipe | Single wall pipe | Double wall pipe | |
| Clearance - Side wall | 17" | 17" | 16" | 16" |
|---|---|---|---|---|
| Clearance - Corner | 10" | 7" | 10" | 7" |
| Clearance - Back wall | 14 1/2" | 6" | 11" | 6" |
| Clearance - Base of the unit to ceiling** | 84" | 84" | 84" | 84" |
Warranty Details
All Drolet products come with a Limited Manufacturer's Warranty. Depending on which part of the stove, Drolet offers a 1-5 year warranty. Please make sure to register your warranty through Drolet
