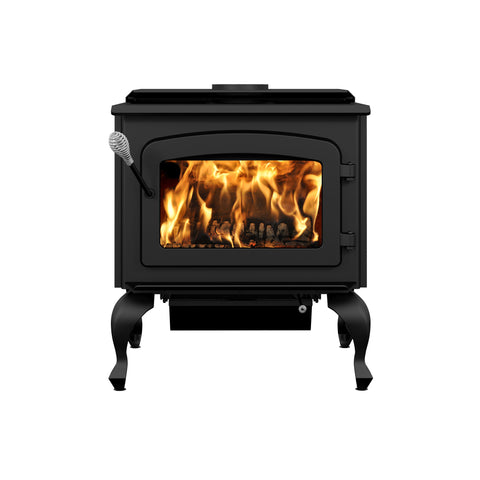

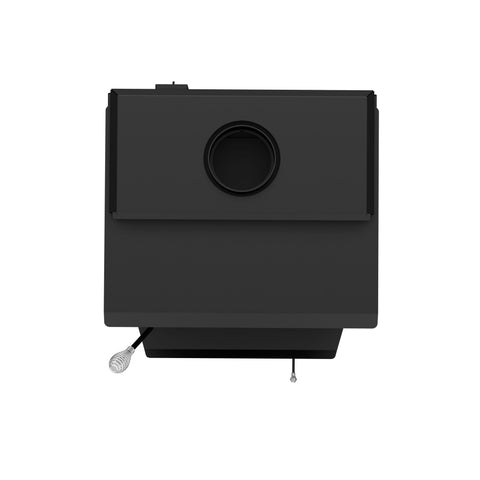

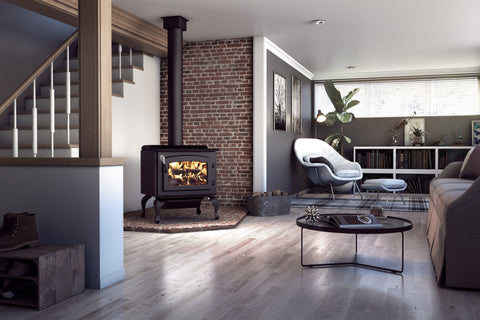

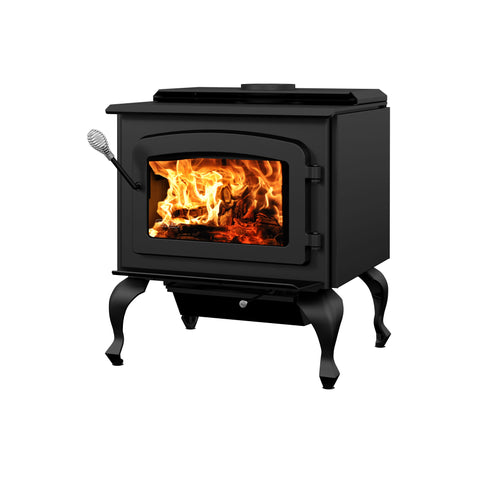

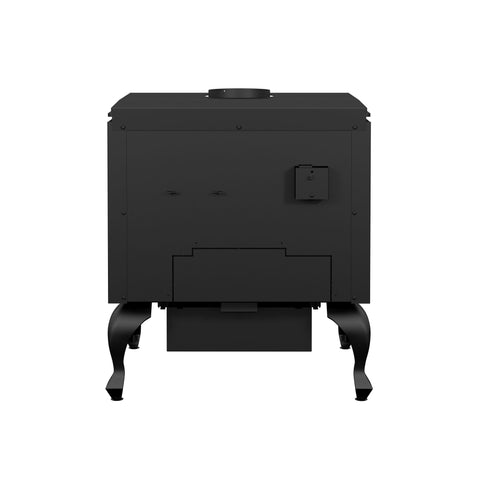

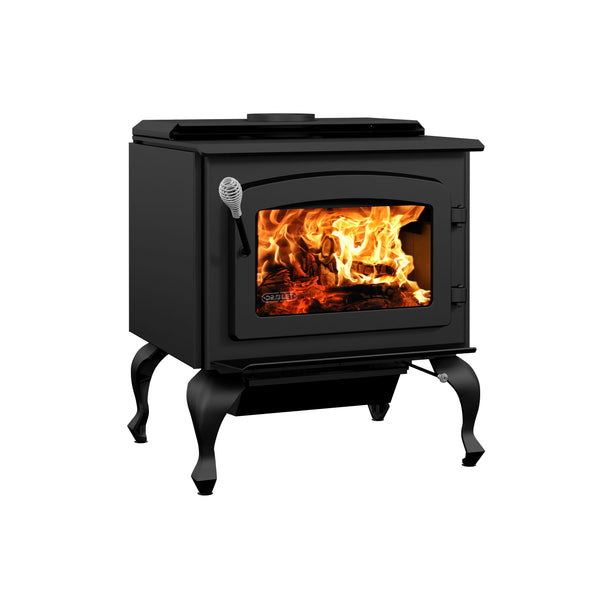

Drolet Escape 1800 Wood Stove on Legs - Black Door DB03105
Drolet Escape 1800 Wood Stove on Legs - Black Door DB03105
Designed for areas of up to 2,100 square feet, this spacious non-catalytic wood stove has the capacity to generate a remarkable 75,000 BTU/h while releasing just 1.54 g/h of fine particles. The appliance comes furnished with side panels that minimize the required distances from flammable materials, along with a superior heat exchanger on top that effectively channels warmth to the front of the device.
Included: cast iron legs with ash drawer, top air deflector, ceramic glass, side panels, ash lip, air damper
- Burn for a maximum of 8 hours
- Suitable for logs up to 20 inches
- Firebox capacity of 2.4 cubic feet
- Sturdy top made of heavy-duty 5/16'' steel
- Certified by the EPA
- Manufactured with pride in Canada
- Comes with a limited lifetime warranty
- Approved for installation in mobile homes and alcoves
Options: blower, thermodisc, firescreen, fresh air intake kit
Installation and Operation Manual
Specifications
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area (9) | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 1.95 ft³ |
| Maximum burn time (9) | 8 h |
| Maximum heat output-dry cordwood (4) | 75,000 BTU/h (22 kW) |
| Minimum overall heat output rate (4) (5) | 14,200 BTU/h (4.16 kW) |
| Maximum overall heat output rate (4) (5) | 44,500 BTU/h (13.04 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 72 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 77 % |
| Optimum efficiency (1) (2) | 79 % |
| Optimum heat transfer efficiency (8) | 76 % |
| Average particulate emission rate (3) | 2.3 g/h |
| Average CO (10) | 69 g/h |
| Size | Large |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 26 1/8" |
| Overall dimension (Height) | 30 1/8" |
| Overall dimension (Depth) | 25 7/8" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 6 3/4" |
| Distance-center of the flue outlet to side unit | 12 7/8" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12' |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 16" x 9 1/4" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 12" |
| Firebox size (Depth) | 16 1/2" |
| Log positioning | Loading over width |
| Maximum log length | 20" |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited lifetime |
| Shipping weight | 368 lb (167 kg) |
| Clearances to combustibles* | Canada | United-States | ||||
| Single wall pipe | Double wall pipe | Single wall pipe | Double wall pipe | |||
| Clearance - Side wall | 17" | 17" | 16" | 16" | ||
|---|---|---|---|---|---|---|
| Clearance - Corner | 10" | 7" | 10" | 7" | ||
| Clearance - Back wall | 14 1/2" | 6" | 11" | 6" | ||
| Clearance - Base of the unit to ceiling | 84" | 84" | 84" | 84" |
Warranty Details
All Drolet products come with a Limited Manufacturer's Warranty. Depending on which part of the stove, Drolet offers a 1-5 year warranty. Please make sure to register your warranty through Drolet.
