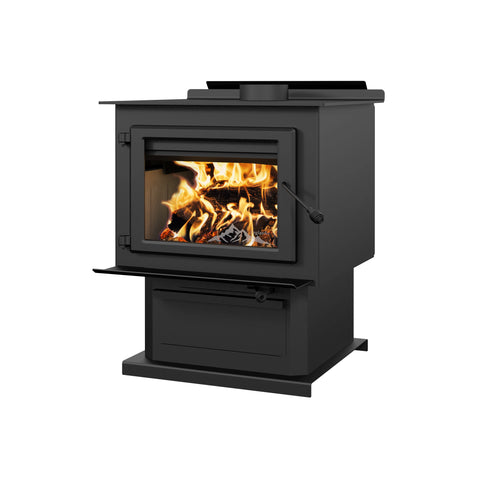

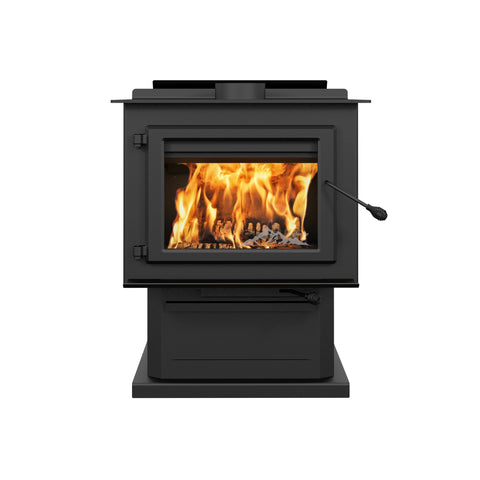

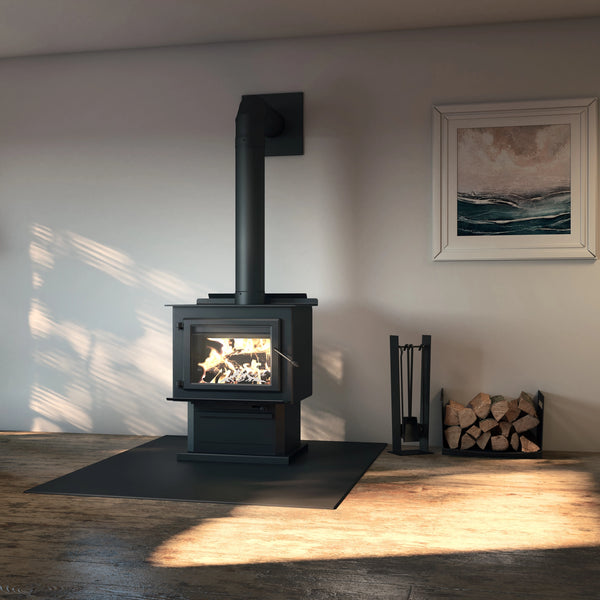

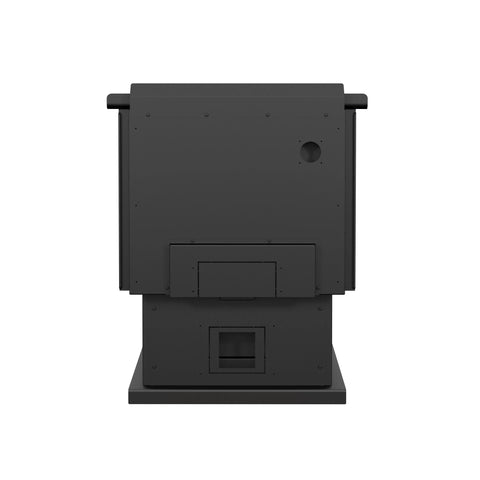

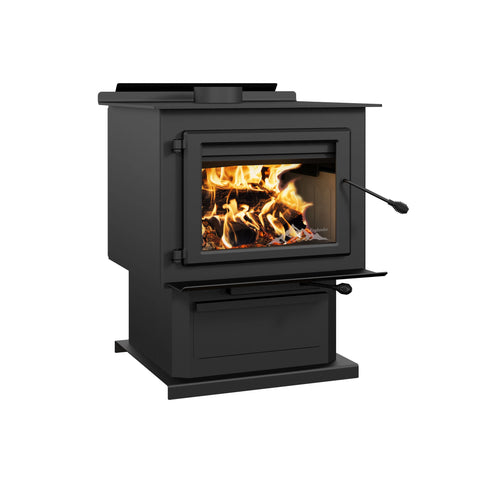

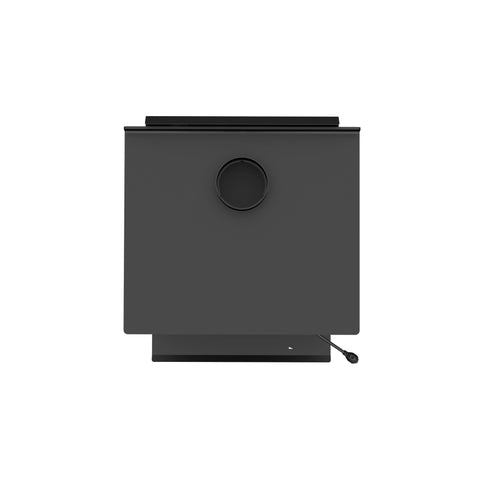

Englander Blue Ridge 500 ESW0012

SKU: ESW0012
Regular price $1,749.00
Unit price
per
No Reviews

Introducing the Englander Blue Ridge 500, a state-of-the-art wood stove designed for maximum efficiency and convenience. Here's what makes it a must-have for every home:

  • High Efficiency: With a 3.5 ft³ firebox, this stove is designed for optimal performance and reduced fuel consumption.
  • Long Burn Time: Enjoy up to 10 hours of burn time, providing continuous warmth and comfort.
  • Durable Construction: Features a 5/16" steel top reinforced with a heat shield for enhanced durability.
  • Quality Materials: The cast iron door and ceramic glass provide a touch of elegance and long-lasting quality.
  • EPA Certified: Adheres to environmental standards, ensuring clean and responsible heating.
  • Proudly Made in USA: A testament to quality craftsmanship and domestic production.
  • Advanced Combustion System: Utilizes a non-catalytic combustion system for efficient heating.
  • Flexible Installation: Certified for mobile home and alcove installation, fitting seamlessly into various spaces.
  • Tax Benefits: Qualifies for the 30% US tax credit, offering financial incentives for eco-friendly choices.
  • Included Accessories: Comes with a pedestal, ash drawer & lip, air intake damper & rear air deflector for complete convenience.

Make the Englander Blue Ridge 500 wood stove part of your home today and experience the future of heating!

Specifications

Fuel type Dry cordwood (16" recommended)
Recommended heating area 1,000 - 2,700 ft²
Overall firebox volume 3.5 ft³
EPA loading volume 2.88 ft³
Maximum burn time 10 h
Maximum heat output-dry cordwood 110,000 BTU/h
Minimum overall heat output rate 17,200 BTU/h (5.0 kW)
Maximum overall heat output rate 57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV) 71 %
Average overall efficiency-dry cordwood (LHV) 76 %
Optimum efficiency 77 %
Optimum heat transfer efficiency 75 %
Average particulate emission rate 1.6 g/h
Average CO 73 g/h
From serial # 100
Certifications EPA-2020
Short description High efficiency 3.5 ft³ firebox
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Certified according to applicable standards CAN/USA accredited laboratory
Overall dimension (Width) 28 1/8"
Overall dimension (Height) 35 1/8"
Overall dimension (Depth) 31 1/4"
Premium quality blower included (CFM) Optional
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Distance-center of the flue outlet to back unit 8"
Distance-center of the flue outlet to side unit 14 1/8"
Recommended chimney diameter 6"
Type of chimney ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height 12'
Door type Single, glass with cast iron frame
Door opening size (Width) 19"
Door opening size (Height) 9 7/8"
Glass type Ceramic glass
Glass surface - W x H 16 5/8" x 11 3/4"
Steel thickness-body 3/16"
Steel thickness-top 5/16"
Firebox size (Width) 22 7/8"
Firebox size (Height) 13"
Firebox size (Depth) 20 1/8"
Log positioning Loading over width and over depth
Maximum log length 22" oriented East-West
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
High-efficiency certified appliance Yes, EPA 2020 approved
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, UL 737
Warranty Limited 5 years

Clearances

Clearances to combustibles* Canada United States
Single wall pipe Double wall pipe Single wall pipe Double wall pipe
Clearance - Back wall 13 3/4" 8" 13 3/4" 8"
Clearance - Side wall 22" 19" 22" 19"
Clearance - Corner 12" 12" 12" 12"
Clearance - Base of the unit to ceiling** 84" 84" 84" 84"
