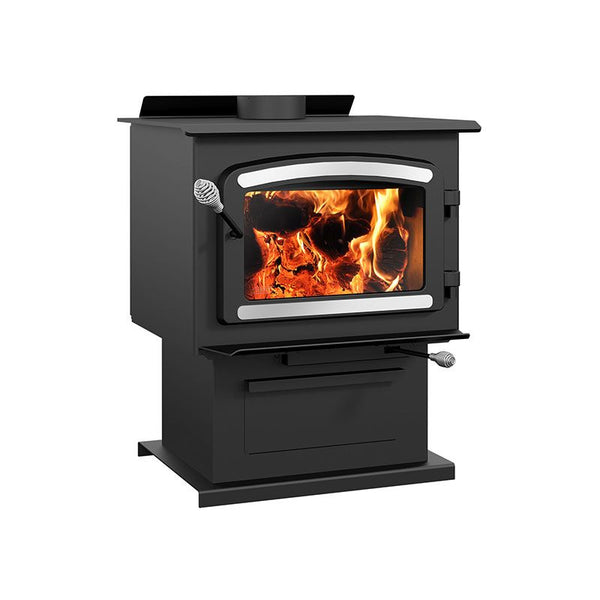

Drolet Heritage Wood Stove With Blower DB03190
With the capacity to effectively heat an expansive area of up to 2,100 square feet, the Heritage stove presents a remarkable maximum heat output of 75,000 BTU/h. Its sturdy and potent non-catalytic design not only meets but surpasses prevailing environmental benchmarks, boasting an impressively low particle emission rate of 1.54 g/h. Ranked among the most spacious stoves currently accessible in the market, the Heritage model features a generously sized glass surface, ensuring an enhanced and immersive appreciation of the contained fire.
Included: pedestal with ash drawer, blower, air deflector, ceramic glass, ash lip, air damper
- Burn time up to 8 hours
- Fits 20" logs
- 2.4 ft³ firebox volume
- Sturdy 5/16" steel top
- EPA certified for eco-friendliness
- Crafted in Canada
- Limited lifetime warranty
- Suitable for mobile homes and alcoves
- Weight: 350 lbs
Options: Thermodisc, firescreen, fresh air intake kit
Heritage Stove Installation and Owner's Manual
Stove Dimensions
Woodstove Manual | Safety Notifications and General Information
Specifications
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area (9) | 500 - "2,100 ft²" |
| Overall firebox volume | "2.4 ft³" |
| EPA loading volume | "1.95 ft³" |
| Maximum burn time (9) | 8 h |
| Maximum heat output-dry cordwood (4) | 75,000 BTU/h (22 kW) |
| Minimum overall heat output rate (4) (5) | 14,200 BTU/h (4.16 kW) |
| Maximum overall heat output rate (4) (5) | 44,500 BTU/h (13.04 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 72 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 77 % |
| Optimum efficiency (1) (2) | 79 % |
| Optimum heat transfer efficiency (8) | 76 % |
| Average particulate emission rate (3) | 2.3 g/h |
| Average CO (10) | 69 g/h |
| Size | Large |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 26" |
| Overall dimension (Height) | 32 3/4" |
| Overall dimension (Depth) | 32" |
| Premium quality blower included (CFM) | 100 CFM included |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 11 1/2" |
| Distance-center of the flue outlet to side unit | 13" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12' |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 16" x 9 1/4" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 11 3/4" |
| Firebox size (Depth) | 16 3/4" |
| Log positioning | Loading over width |
| Maximum log length | 20" |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited lifetime |
| Shipping weight | 367 lb (166 kg) |
Clearances
| Clearances to combustibles* | Canada | United States | ||
| Single wall pipe | Double wall pipe | Single wall pipe | Double wall pipe | |
| Clearance - Side wall | 22" | 22" | 22" | 22" |
|---|---|---|---|---|
| Clearance - Corner | 12" | 12" | 12" | 12" |
| Clearance - Back wall | 14 1/2" | 6" | 11" | 6" |
| Clearance - Base of the unit to ceiling** | 84" | 84" | 84" | 84" |
Warranty Details
All Drolet products come with a Limited Manufacturer's Warranty. Depending on which part of the stove, Drolet offers a 1-5 year warranty. Please make sure to register your warranty through Drolet.
