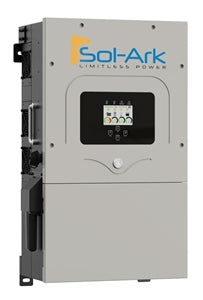

Sol-Ark SA-5K Pre-wired Hybrid Inverter System
Sol-Ark SA-5K Hybrid Inverter System
Sol-Ark 5K Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.
SA-5K Features:
- Simple to install with touchscreen interface
- Grid Tied Mode: Sell your power to reduce electric bill
- Meter Zero Mode: Zero your electric bill without a smart meter
- Time of Use: Use solar and batteries to minimize grid power usage
- Programmable Smart Load Mode
- DC and AC Coupling
- Works with a wide range of battery chemistries - Lead acid to Lithium
SA-5K Specifications:
- AC Voltage: 120/240V split phase
- AC Frequency: 60/50 Hz
- Max PV power delivered to Battery & AC outputs: 6500 Watts
- Max AC Coupled input(Micro/String Inverters): 9,600 Watt
- MPPT Voltage Range: 150-425V
- Max DC Current: 10 Amp (per mppt)
- Inverter Efficiency: 96.0%
- Listings & Certifications: UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
- Weight: 78. lbs
- Dimensions (H x W x D): 30.0" x 18.30" x 10.00"
5 Year Standard Warranty
Product Documents
SPECIFICATIONS:
5K Outdoor | 8K Outdoor | 12K Outdoor | |
Solar PV Continuous Power | 6.5kW | 11kW | 12 kW* |
Inverter AC Continuous Power (On Grid) | 5 kW | 8 kW | 9kW* |
Inverter DC Continuous Power (Off Grid) |
5 kW | 8kW | 9kW |
Off Grid Inverter AC Peak Surge Power | 16kW (10s) | ||
Continuous AC Power w/Grid or Generator | 15kW | 12kW | |
System Idle Power | 60W | ||
Continuous Battery Charging Output | 120A | 185A | |
Battery Capacity | 50 - 9900Ah | ||
PV to Battery Efficiency @ 65% | 97.5% | ||
AC to Battery Efficiency @ 65% | 96% | ||
Battery to AC Efficiency @ 65% | 95% | ||
On Grid PV to AC Efficiency @ CEC | 96% | ||
Grid Failure UPS Transfer Time | 4 ms | ||
Preferred Application | Grid Tie + Storage (except in CA and HI), Off Grid | Grid Tie + Storage, Off Grid | |
Parallel Stacking | No | Yes - up to 8 (240V) | |
3 Phase Capability | No | Yes | |
EMP Hardened Option Available | No | Yes | Yes |
Enclosure | NEMA 3R | ||
Weight and Dims | 78 lbs 30.0" x 18.3" x 10" |
||
Warranty | 5 Year | 10 Year |
