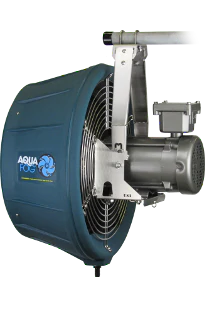

Aquafog Jaybird Turbo XE Explosion-Proof Hazardous-Duty Fog Fan XE-2000-Exp
Aquafog Jaybird Turbo XE Explosion-Proof Hazardous-Duty Fog Fan XE-2000-Exp
The Turbo XE-EXP is a highly specialized unit designed for operation in explosion-prone areas. These applications usually contain volatile dust or vapors. See the Certifications section for certification details.
Turbo XE-EXP fogging fans are superior atomizers designed for a variety of commercial and industrial applications. They produce fog combined with powerful airflow, making them ideal for interior humidification, evaporative cooling, and chemical fogging. Components are UV stabilized and suitable for outdoor use.
This centrifugal atomizer produces billions of tiny, fog-like particles that evaporate quickly. The Turbo XE-EXP operates without the use of nozzles, high-pressure pumps, compressed air, or filtration, eliminating the need for constant repairs and maintenance. The fogging output is adjustable and controlled by a flowmeter. Flowmeters require a water supply of 10 to 100 PSI. Units can also be fed using a metering pump or gravity feed system.
Features
- Nozzle-Free Atomization
- Up to 34 GPH
- Pivoting Fogging Head
- Powerful and Efficient
Flowmeter Control Panel
Turbo XE direct feed units come with a flowmeter panel of your choice. These panels control the water flow rate and fogging output. They feature stainless steel construction and a clear polycarbonate flow rate scale for monitoring. Flowmeters require a water supply of 10 to 100 PSI.
The smaller flow rate panels are generally used in applications requiring drier fog.
Jaybird’s Rear-Feed Blade
Our exclusive blade design is a significant product development, enhancing reliability and performance.
ABB Explosion-Proof Motor
- Industrial grade
- For use in Hazardous Locations
Carol® Brand Flexible Cable
If the installation requires a flexible cord, optional cord packages with connectors are available.
- Extra Hard Usage Approved
- Classes, Divisions NEC 501 - 505
Corrosion Resistant
- 18-8 & 304 Stainless Steel Materials
- Polypropylene & Polyethylene Plastics
Specifications
| Dimensions: |
Diameter 21 in / 53.5 cm Depth 17.5 in / 44.5 cm Height 25 in / 63.5 cm |
|---|---|
| Propulsion Distance: | 30-35 ft / 10-11 m |
| CFM: | 3,000 |
| Noise @ 10 ft: | 72 dB(A) |
| Average Particle Size: |
5-10 microns @ low output 25 microns @ mid output 35 microns @ high output |
| Operation: | Continuous duty capability |
| Energy Consumption: | 1/2 HP - 7.4/3.7A @ 115/230V |
| Hardware: | 300 Series stainless steel |
| Shipping Weight: |
Box 1, 19 lbs Box 2 (1/2 HP), 32 lbs |
| Box Dimensions: |
Box 1, 21” x 21” x 15” Box 2, 16” x 12” x 12” |
| Environment: |
Endures temperatures from 31° to 160° F Indoors / outdoors Humidity to 85% RH UV stabilized & impact resistant |
