Invicta Aaron 36" Cast Iron Wood Burning Stove 6129-04
Product Description
Designed with two front sides, it’s easy to find the perfect spot for your new Aaron fireplace. This stove is ideal for large logs and offers a stunning panoramic view of its flames. Simply place it on a raw material such as stone or on one of its benches (sold separately). Bench available in 2 sizes.
No need to flip a coin to look on the bright side of this double-sided stove. Aaron multiplies design options: directly placed on a natural material like stone or on the optional metallic bench. This stove lets you enjoy a great vision of the fire and offers the possibility to burn.

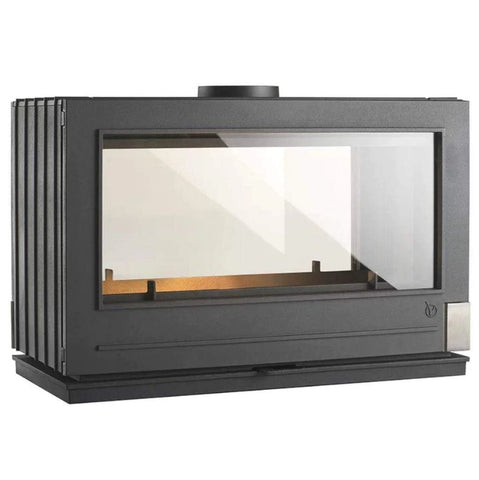

This Invicta Aaron EPA Exempt Cast-Iron See-Through double sided wood burning stove has an expansive ceramic glass at the front and back, making it ideal for a double-sided viewing window, making this stove an excellent choice for inner room installation and also giving you a truly panoramic view of your dancing fire. A considerable 24kW output means this stove is not just a pretty face. Made by stove manufacturer Invicta in France, this high-efficiency stove delivers 90,000 BTUs of heat.
Features
Adjustable secondary air
Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.
Clean glass
The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.
Double opening
Unit has two doors. Ideal for separating two rooms to reload the wood from one side to another.
Double face
Intermittent
The unit operates with regular loading of small quantities of wood. This operating method is particularly high-performing and respectful of the environment.
Origine France Garantie (Made in France Guarantee)
The Origine France Garantie is the only certification that certifies a product was manufactured in France.
Technical Elevations
Optional Accessories
Stove Bench

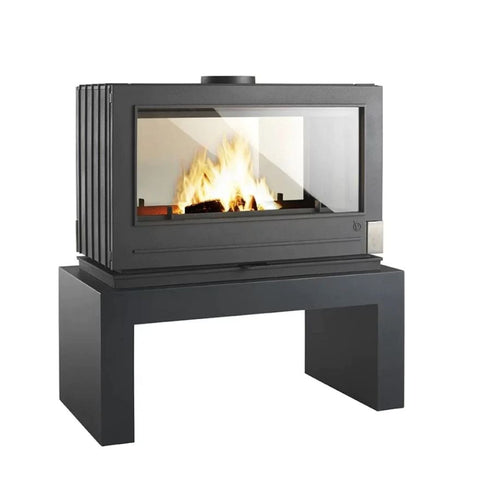

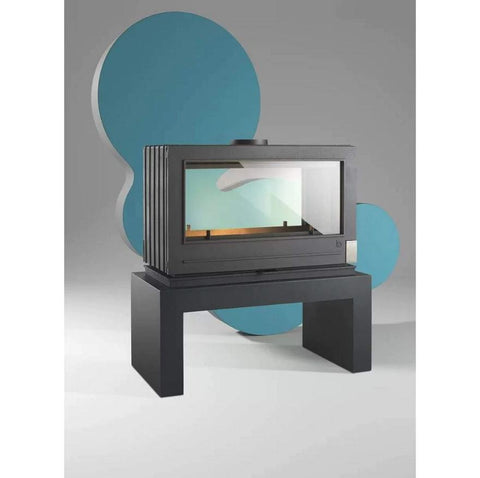

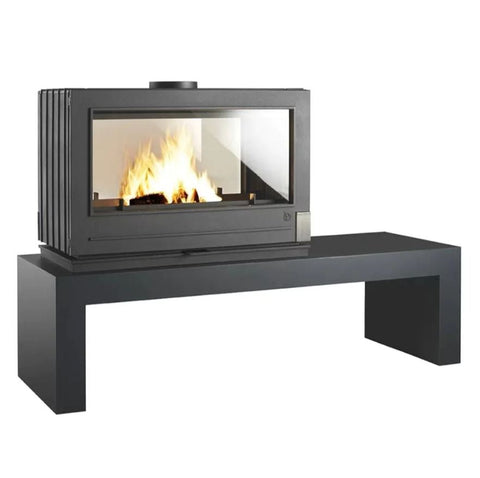

This black sandblasted steel bench is both modern and practical. It has 4 levelers. Available in two sizes (39 Inches, 63 Inches) , it allows you to install your Preston, Aaron or Réva stove.
39" Decorative Stove Bench: 39 W X 17.5 H X 21.5 D
63" Decorative Stove Bench: 63 W X 17.75 H X 21.5 D
Also Note: This appliance must be installed on a non-combustible protector that extends to the front, sides, and back of the appliance.
Specification
| SPECIFICATION | |
|---|---|
| OPTIMAL POWER | 12 kW |
| POWER MODULATION | 8 to 18 kW |
| HEAT VOLUME | 160 - 360 m³ |
| HEATING SURFACE | 65 to 145 m² |
| EFFICIENCY | 70 % |
| CO RATE | 0.15 % |
| CONCENTRATION OF POWDERS | 82 mg/Nm³ |
| PERFORMANCE INDEX | 1,2 |
| COMBUSTILE | Logs 25, Logs 33, Logs 50 cm |
| MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY) | 80 cm |
| LOAD | Two front sides |
| SMOKE EXHAUST | Top |
| DIAMETER OF NOZZLE | 180 mm |
| DIMENSIONS | H 610 x W 910 x D 481 mm |
| WEIGHT | 179 kg (395 lb.) |
| DESIGN | Contemporain |
| MATTER | Cast Iron |
| COMPLETION | Anthracite |
| CERTIFICATION | EN 13240 EPA Exempt |
| GUARANTEE | 5 years |
| OPTIONS | Benches: PM 6961-31: H 450 x W 1000 x D 550 mm / GM 6961-28: W 1600 mm |
Resources
Invicta Aaron Stove Installation And Owners Manual
