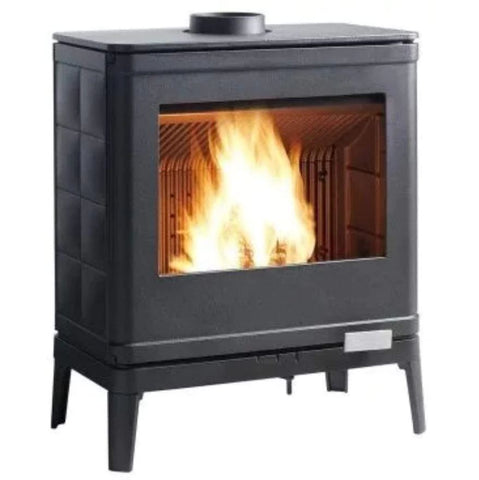

Invicta Kiara 26" Cast Iron Wood Burning Stove 6104-42
The Kiara stove provides comfort and reassurance in extreme cold. It adds a touch of style to your room with its calming effects. Exclusively at Bricomarché
The Kiara by Invicta wood stove is made of cast iron so you know it will last. The contemporary design means even when it goes out of style, it will stay a classic. Designed to meet the 2020 EPA standards making this stove on the cutting edge of energy efficiency.
The Invicta 32 inch Kiara is a beautifully designed woodburning stove whos timeless cast iron body will surely stand the test of time. Currently meets 2020 EPA standards and is at the forefront of energy efficiency. Its output of 42,000 BTU will heat up to 1500 square feet. The large glass window will give you a front seat to the ambiance that a woodburning stove lends to your home.
The Kiara is a stylish and high-performance stove inspired by the heat efficiency of cast iron radiators. Its fins provide it with a unique and elegant look, all the while improving its energy efficiency by way of an extended heat transfer surface.
8 hour extended burning
The unit can operate in slow combustion mode for 8 hours without adding more fuel or other external intervention. There will be a bed of embers after this period. This is enough to reload the unit with fuel to relight it.
Adjustable secondary air
Secondary air protects the glass against smoke and soot deposits. It ensures combustion of volatile materials. The adjustable secondary air flow can adapt the unit’s operation to high draft conditions.
The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.
Origine France Garantie (Made in France Guarantee)
The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.
Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.
Rear Heat Shield
- Color: Charcoal
- Optional accessory
- Manufactured from heat-resistant material
- For use with the Invicta Kazan cast iron wood stove
- Protects against excessive heat produced by wood stoves
- Supplies an additional layer of safety during the operation of hearth appliances
Please Note: Do not connect the stove to any hot air distribution system
|OPTIMAL POWER||9 kW|
|POWER MODULATION||6 to 13.5 kW|
|HEAT VOLUME||125 to 275 m³|
|HEATING SURFACE||50 to 110 m²|
|GREEN FLAME||7 stars|
|CO RATE||0,08 %|
|CONCENTRATION OF POWDERS||28 mg/Nm³|
|COMBUSTILE||Logs 25, Logs 33, Logs 50 cm|
|MAXIMUM LENGTH OF THE LOGS (HORIZONTALLY)||58 cm|
|SMOKE EXHAUST||Top or Back|
|DIAMETER OF NOZZLE||150 mm|
|DIMENSIONS||H 801 x L 652 x W 372 mm|
|CERTIFICATION||EN 13240 – BImSchV2|
Invicta Kiara Stove Installation
Invicta Kiara Stove Owners Manual
Invicta Kiara Stove Technical Specification
