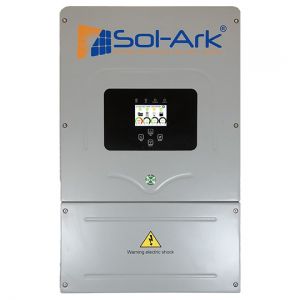

Sol-Ark SA-12K Pre-wired Hybrid Inverter System

Item #:

$7,400⁰⁰
Save $100

Handling Time:
Product Ships in 2-4 Business Days.
Shipping Time:
Please Allow 5-8 Business Days for Delivery. Freight Orders Include FREE Delivery Appointment.
Please call, chat, or e-mail us to inquire.
Warranty: See Warranty Registration Page

Not Quite Ready to Get Your Product Delivered?
Want to take advantage of a current sale but not ready to receive an item? No problem! All orders receive special attention and we can hold items for as long as you need! Please Contact Us for more details!

Why Shop with Us?

☑ We will MATCH OR BEAT any Competitor's Price. Simply Contact Us.
☑ Friendly & Responsive Award Winning Customer Service Team.
☑ SSL Secure Payment Gateway & Hassle Free Returns Makes Shopping Easy and Stress-Free.

Info
Shipping
Price Match

Sol-Ark SA-12K Pre-wired Hybrid Inverter System

Sol-Ark SA-12K Hybrid All-in-One

Sol-Ark 12K Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.

SA-12K Features:

Simple to install with touchscreen interface
Grid Tied Mode: Sell your power to reduce electric bill
Meter Zero Mode: Zero your electric bill without a smart meter
Time of Use: Use solar and batteries to minimize grid power usage
Programmable Smart Load Mode
DC and AC Coupling
Works with a wide range of battery chemistries- Lead acid to Lithium

SA-12K Specifications:

AC Voltage: 120/240V split phase
AC Frequency: 60/50 Hz
Max Continuous AC Output Power:12,000W
MPPT Voltage Range: 150-425V
Max Input Current: 18Amp (per mppt)
Inverter Efficiency: 96.0%
Listings & Certifications:UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
Weight: 77. lbs
Dimensions (H x W x D): 30.0" x 18.30" x 10.00"

10 Year Standard Warranty

Product Documents

Sol-Ark SA-12K Brochure

Sol-Ark SA-12K Specifications

Sol-Ark SA-12K Install Guide and Owner Manual

Sol-Ark SA-12K Limited Warranty

SPECIFICATIONS:

	5K Outdoor	8K Outdoor	12K Outdoor
Solar PV Continuous Power	6.5kW	11kW	12 kW*
Inverter AC Continuous Power (On Grid)	5 kW	8 kW	9kW*
Inverter DC Continuous Power (Off Grid)	5 kW	8kW	9kW
Off Grid Inverter AC Peak Surge Power	16kW (10s)
Continuous AC Power w/Grid or Generator	15kW		12kW
System Idle Power	60W
Continuous Battery Charging Output	120A	185A
Battery Capacity	50 - 9900Ah
PV to Battery Efficiency @ 65%	97.5%
AC to Battery Efficiency @ 65%	96%
Battery to AC Efficiency @ 65%	95%
On Grid PV to AC Efficiency @ CEC	96%
Grid Failure UPS Transfer Time	4 ms
Preferred Application	Grid Tie + Storage (except in CA and HI), Off Grid	Grid Tie + Storage, Off Grid
Parallel Stacking	No		Yes - up to 8 (240V)
3 Phase Capability	No		Yes
EMP Hardened Option Available	No	Yes	Yes
Enclosure	NEMA 3R
Weight and Dims	78 lbs 30.0" x 18.3" x 10"
Warranty	5 Year		10 Year

Order Confirmation

Upon placing your order, you will receive a confirmation e-mail. This message will confirm your order has been received by our system, and your credit card was approved for purchase.

As soon as your order is received on our end, we process the order by confirming it is in stock and ready for shipment. If the items you purchased happen to be on backorder, we will reach out to you via e-mail with the choice of waiting or cancelling for a 100% refund.

Please allow 1-3 days for processing your order.

Shipment

Different products have their own specific shipping times, so please consult the product page for the appropriate delivery time.

Due to high demand and low supply, certain items can only be placed on back order at specific times. Please contact customer service to hear about specific items availability.

Free shipping is offered for the contiguous United States. If you'd like an order shipped to Hawaii or Alaska, please reach out to us directly to discuss requesting a shipping quote.

For any rush shipping orders feel free to reach out to our team for rates and options. When available, we will send you a tracking number for your order. If you do not receive a tracking number to your provided email address within 4 days of your order, send us a message at info@renovationreserve.com and we will follow up with you.

We Guarantee The Absolute BEST Price!

We do our best to ensure that we offer the best prices around. If you find a product being offered by a different online distributor at a lower price, just give us a call and we will match their price (assuming they're not under the manufacturer's minimum price).

Our policy allows you to feel confident that you are getting the absolute best price for the product you are ordering.

Our 100% Price Match Guarantee has the following restrictions:

Promotions such as rebates and buy one, get one free offers are not eligible
We cannot price match items that are out of stock.
The website can not be a discounter or auction website (ie; eBay, overstock, etc.)
The competitor must be an Authorized Retailer of the item you have purchased
The Price Match Guarantee includes will be calculated based on item price, sales tax, shipping charges
Price Matches Do Not Apply For Exchange Orders

Info▼

Sol-Ark SA-12K Pre-wired Hybrid Inverter System

Sol-Ark SA-12K Hybrid All-in-One

SA-12K Features:

Simple to install with touchscreen interface
Grid Tied Mode: Sell your power to reduce electric bill
Meter Zero Mode: Zero your electric bill without a smart meter
Time of Use: Use solar and batteries to minimize grid power usage
Programmable Smart Load Mode
DC and AC Coupling
Works with a wide range of battery chemistries- Lead acid to Lithium

SA-12K Specifications:

AC Voltage: 120/240V split phase
AC Frequency: 60/50 Hz
Max Continuous AC Output Power:12,000W
MPPT Voltage Range: 150-425V
Max Input Current: 18Amp (per mppt)
Inverter Efficiency: 96.0%
Listings & Certifications:UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
Weight: 77. lbs
Dimensions (H x W x D): 30.0" x 18.30" x 10.00"

10 Year Standard Warranty

Product Documents

Sol-Ark SA-12K Brochure

Sol-Ark SA-12K Specifications

Sol-Ark SA-12K Install Guide and Owner Manual

Sol-Ark SA-12K Limited Warranty

SPECIFICATIONS:

	5K Outdoor	8K Outdoor	12K Outdoor
Solar PV Continuous Power	6.5kW	11kW	12 kW*
Inverter AC Continuous Power (On Grid)	5 kW	8 kW	9kW*
Inverter DC Continuous Power (Off Grid)	5 kW	8kW	9kW
Off Grid Inverter AC Peak Surge Power	16kW (10s)
Continuous AC Power w/Grid or Generator	15kW		12kW
System Idle Power	60W
Continuous Battery Charging Output	120A	185A
Battery Capacity	50 - 9900Ah
PV to Battery Efficiency @ 65%	97.5%
AC to Battery Efficiency @ 65%	96%
Battery to AC Efficiency @ 65%	95%
On Grid PV to AC Efficiency @ CEC	96%
Grid Failure UPS Transfer Time	4 ms
Preferred Application	Grid Tie + Storage (except in CA and HI), Off Grid	Grid Tie + Storage, Off Grid
Parallel Stacking	No		Yes - up to 8 (240V)
3 Phase Capability	No		Yes
EMP Hardened Option Available	No	Yes	Yes
Enclosure	NEMA 3R
Weight and Dims	78 lbs 30.0" x 18.3" x 10"
Warranty	5 Year		10 Year

Shipping▼

Order Confirmation

Upon placing your order, you will receive a confirmation e-mail. This message will confirm your order has been received by our system, and your credit card was approved for purchase.

Please allow 1-3 days for processing your order.

Shipment

Different products have their own specific shipping times, so please consult the product page for the appropriate delivery time.

Due to high demand and low supply, certain items can only be placed on back order at specific times. Please contact customer service to hear about specific items availability.

Free shipping is offered for the contiguous United States. If you'd like an order shipped to Hawaii or Alaska, please reach out to us directly to discuss requesting a shipping quote.

Price Match▼

We Guarantee The Absolute BEST Price!

Our policy allows you to feel confident that you are getting the absolute best price for the product you are ordering.

Our 100% Price Match Guarantee has the following restrictions:

Promotions such as rebates and buy one, get one free offers are not eligible
We cannot price match items that are out of stock.
The website can not be a discounter or auction website (ie; eBay, overstock, etc.)
The competitor must be an Authorized Retailer of the item you have purchased
The Price Match Guarantee includes will be calculated based on item price, sales tax, shipping charges
Price Matches Do Not Apply For Exchange Orders

Functions as advertised..

Works well. Have evaluated and tested most features with oscilloscope, power analyzers, and bench testing. Internal battery current indication is off by 2%, but within expectations. Conversion efficiencies are well above 90%, fans turn off or down during low power usage. Thermal management good, has internal air ducting to force air to selected parts of the circuitry. Self-protects against overpower, shuts down if necessary. MPPT functions well. Overall: well worth the price for a medium sized application. I am a retired power conversion engineer and was looking for a cost effective, reliable system. It more than met my expectations so far. Will update if I have future reliability issues.

Perfect for liveaboard boats

First if you have the slighest experience with wiring or electronics you could install this without the instructions because all the ports and internal connection points are labeled. If you dont have experience the large sheet color instructions are clear and easy to follow.

Excellent hybrid inverter

Using this hybrid inverter as part of a backup system for when our utility shuts the power off, and it has performed very well. To get some ROI on the investment, we wanted it to power some appliances during the day and especially during 5-8 pm when our rates are the highest, and switch back to grid power when the battery dropped below 75% so that we have some backup for lights and electronics if we needed it. We were able to set it up to do just that, hence the 5 stars.
