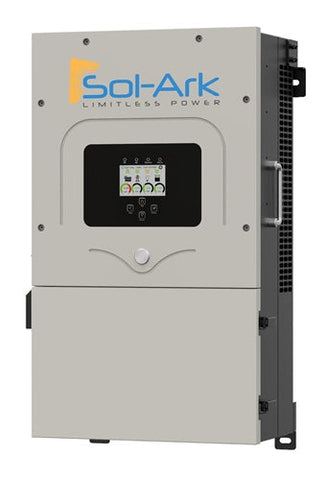

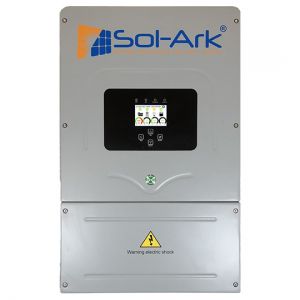

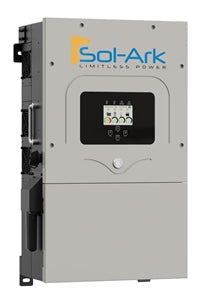

Sol-Ark SA-12K w/ EMP Pre-wired Hybrid Inverter System
Sol-Ark 12K with SA-EMP Kit: Indirect Lightning, Solar Flare & EMP Hardening for Sol-Ark system. Includes EMP Suppressors for solar panels & 20 appliance suppressors.
Manufacturer Part Number: 12K with SA-EMP-12K
Sol-Ark 12K All-In-One Solar Generator System
Parallel Stacking (1-9), Grid Sell, Meter Zero, Time of Use, Smart Load, Peak Shaving, 20kW Peak Power, 9.6kW AC Coupling
-
DC Transformerless:
Boosts PV energy 10-20% without increasing PV array size and reduces storage inverter costs up to 30% -
Battery Efficiency:
Improve battery efficiency by 10-15%; Partial Charge Carbon AGM’s round trip efficiency is 98% vs. wet cell 80% -
Easy to Install:
Sol-Ark 12K’s All-In-One design cuts install time in half. With 2x MPPTs, and 9kW continuous / 20kW peak inverter, a user friendly wiring area, and remote monitoring built in. -
U.P.S.:
Sol-Ark 12K acts as a massive uninterruptible power supply with a lightning fast 4ms transfer time.
Approved for: UL 1741 SA Rule 21, HECO, & Canada PREPA Approved for Puerto Rico 120/240 & 208V
Specifications
Max allowed PV DC Capacity | 6,500W+6,500W = 13,000W |
Max PV power delivered to Battery & AC outputs | 12,000 Watts |
Max DC voltage | 500V@18A, 450V@20A |
MPPT voltage range | 150-425V |
MPPT Starting Voltage | 175V |
Number of MPPT | 2 |
Nominal AC Output Voltage | 120/240/208V split phase |
Peak Inverter Efficiency | 97.5% |
Continuous AC power to Grid (On Grid) | 9000W 37.5A L-L (255 V) 4800W 40A L-N (120V) |
Continuous AC power to Loads (Off-Grid) | 8000W 33A L-L (240V ) 4800W 40A L-N (120V) |
Battery Type | Lead-Acid or Li-Ion |
Nominal DC Input | 48V |
Capacity | 50 – 9900Ah |
Grid to Battery Charging Efficiency | 96.0% |
Dimensions (H x W x D) | 30.0” x 18.30” x 10.00” |
Weight | 78 lbs |
Product Features
-
Next Generation Efficiency
3X Better! Only 3.5% losses vs. 14% in today’s battery based systems -
Split Phase & Three Phase
Sol-Ark’s 12K pumps out power just like the grid, allowing you to power 120V/ 240V/208V appliances -
Grid-Tied, Hybrid, Off-Grid
Manages power from Solar, Battery, Grid, Load, and Generator simultaneously -
Flexible
Sol-Ark is expandable from 5 to 52 (16.5 kW) solar panels and 0-32 batteries. Per 12K unit. -
10-Year Standard Warranty
No need for additional warranties. The 12K comes standard 10-year warranty right out of the box.
Helpful Hint with Sol-Ark hybrid inverters: Unlike most string inverters - Sol-Ark hybrid inverter solution will not have a complete power loss for a series string of modules if one of the panels goes bad (stops producing) *** so as long the total voltage of the remaining panel meets or exceeds the min MPPT voltage range of 150VDC.
